DOC_REF: SRX-TECH-2025
TECHNICAL
SCHEMATICS
Hardware, software, and environmental specifications for the SurviveRx Offline Unit.
HARDWARE MANIFESTO

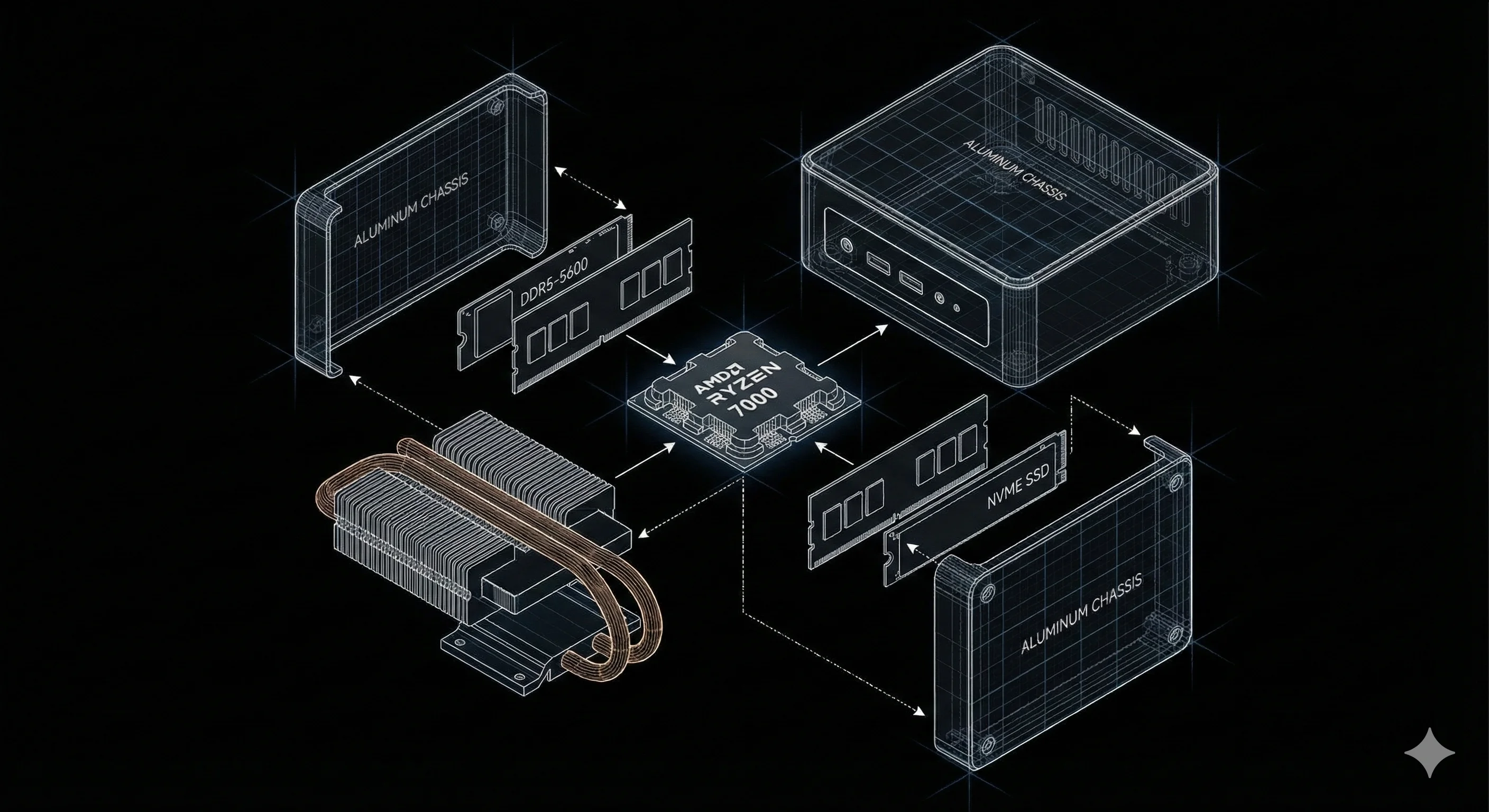

Compute Module
Processor
AMD Ryzen 7 8845HS / Ryzen AI Max+ 395
8-16 Core / 16-32 Thread @ 5.1GHz+
Memory
32-64GB DDR5-5600 / LPDDR5X-8000
Standard/Pro SO-DIMM DDR5-5600, Elite 64GB LPDDR5X-8000 soldered
Architecture
x86-64 (AMD64)
Zen 4 / Zen 5, 4nm Process Technology
Storage Subsystem
Interface
PCIe 4.0 x4 NVMe
M.2 2280 Slot (Dual Slots Available)
Throughput
7,000MB/s+ Read
Sustained Sequential Read
Capacity
1TB - 4TB
User Upgradeable
Comms Array
Wireless LAN
WiFi 6E Tri-band
2.4GHz / 5.0GHz / 6GHz MIMO
Ethernet
Dual 2.5GbE RJ45
Intel I226-V Controller
Bluetooth
BT 5.3 / BLE
Low Energy Beacon Support
ENVIRONMENTAL TOLERANCES
Power Draw Analysis
120W MAX15W IDLE
65W LOAD
Battery Backup
UPS Compatible, 4+ Hours on 500VA

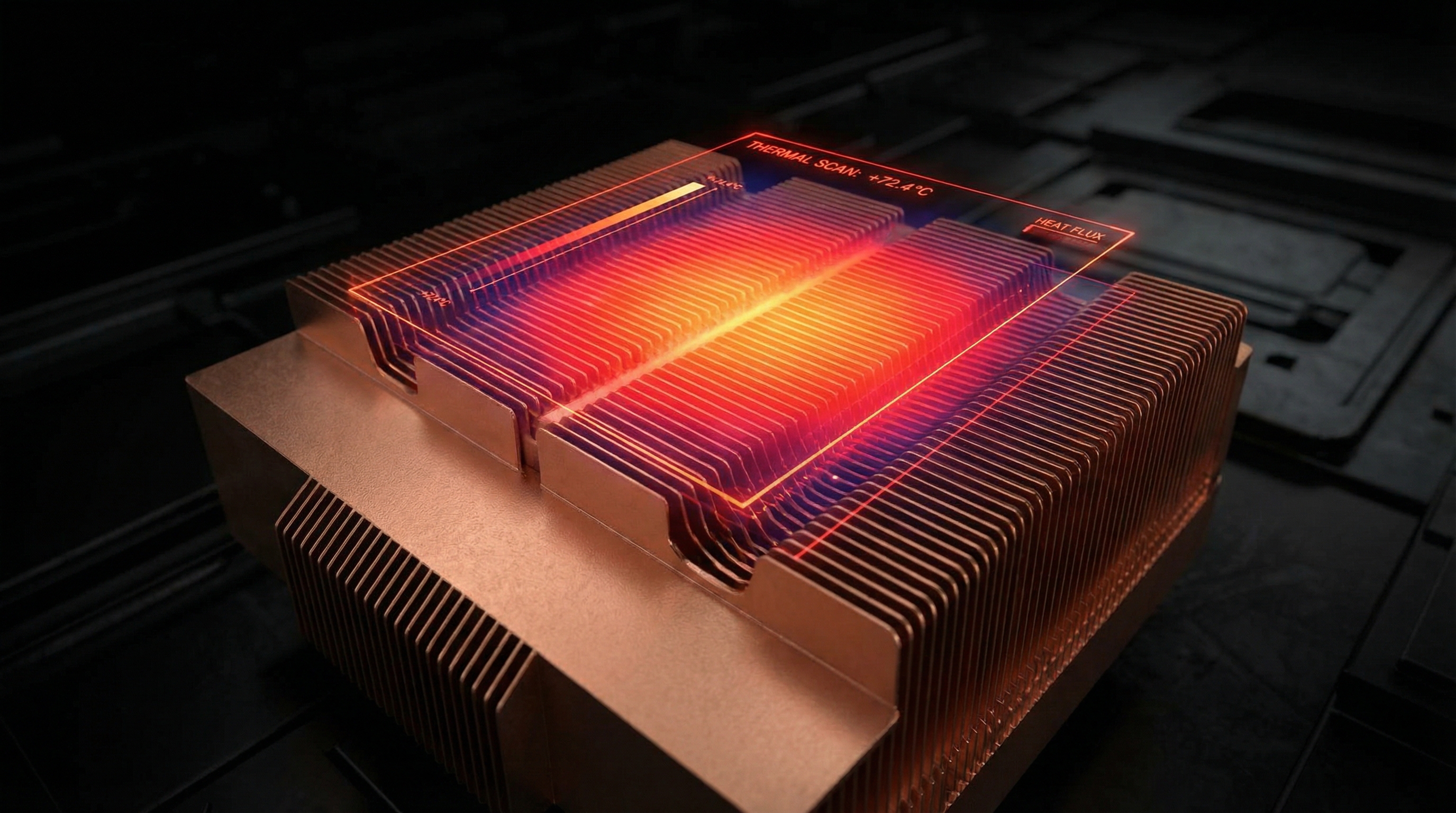

Thermal Operating Range
0°C
Min Operating
+50°C
Max Operating
Active Cooling
Dual Fan System
Under Load
< 75°C Core Temp
SOFTWARE ARCHITECTURE
[LAYER 0]
SurviveRx OS
Ubuntu 24.04 LTS base. Hardened kernel with unattended security updates. ZFS filesystem for data integrity.
● KERNEL 6.8 LTS
[LAYER 1]
Container Engine
Docker-based service orchestration. Isolated environments for maximum stability and easy updates.
● DOCKER CE 26.0
[LAYER 2]
Microservices
- kiwix-serve Content Delivery
- ollama AI Inference
- chromadb Vector Search
- nextcloud Collaboration
